12 - Select Actions

Last updated 16/12/2025

This documentation will explain how you can use Five's

function to open another action without leaving the current menu. Because you stay on the current menu, you can then use Five's

previousAction()

function to return to the previous action.

tip

In the How To Guides chapter, you can learn how to use all of Five's action navigation functions!

Five's

selectAction()

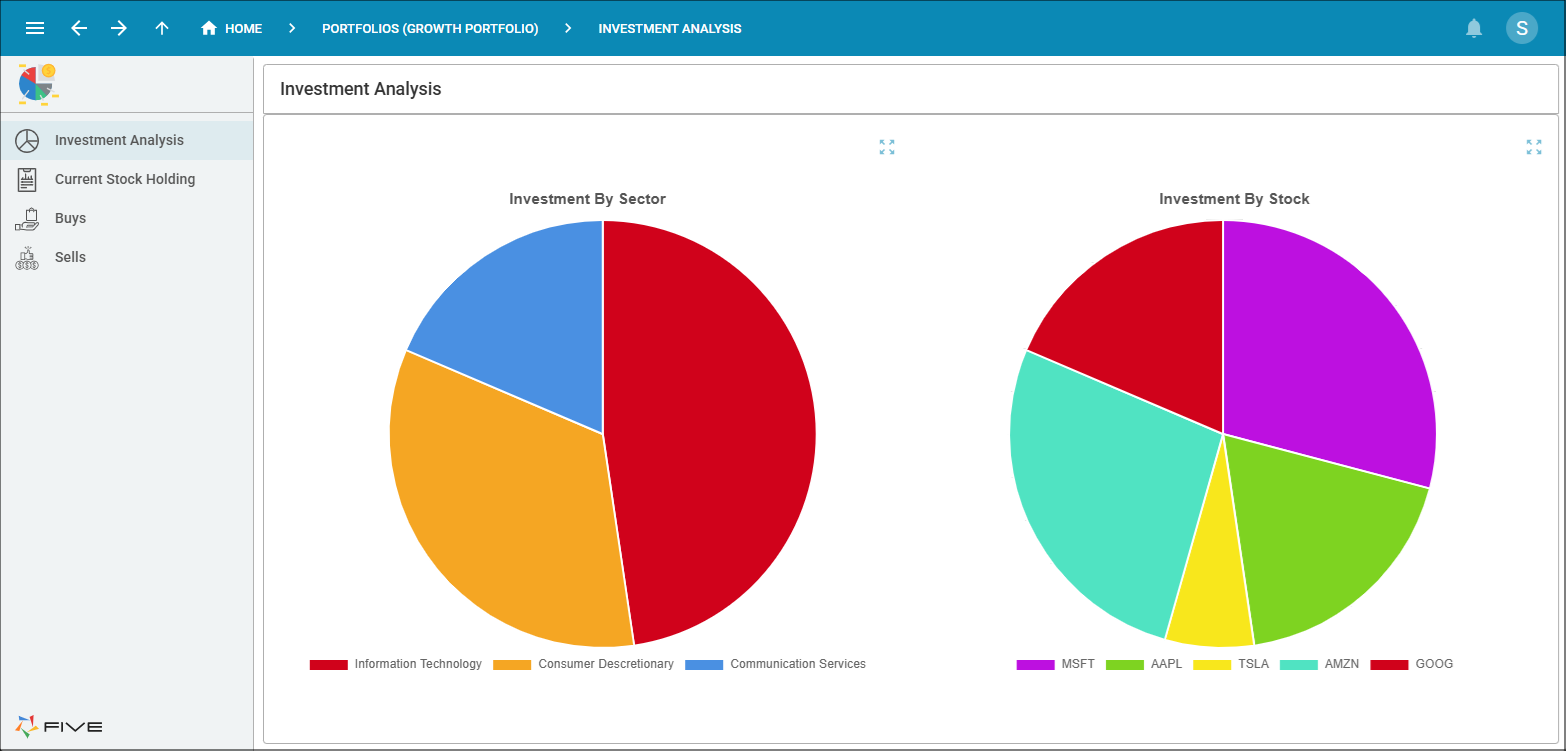

function will be used for when we click on a slice of the Investment By Sector pie chart, this will then display a data view filtered by the sector slice that was clicked. The data view will have an action button that will return us to the previous action through the use of Five's

previousAction()

function.

To do this the following steps are performed:

Add the StocksInSector query to filter the stock belonging to each sector

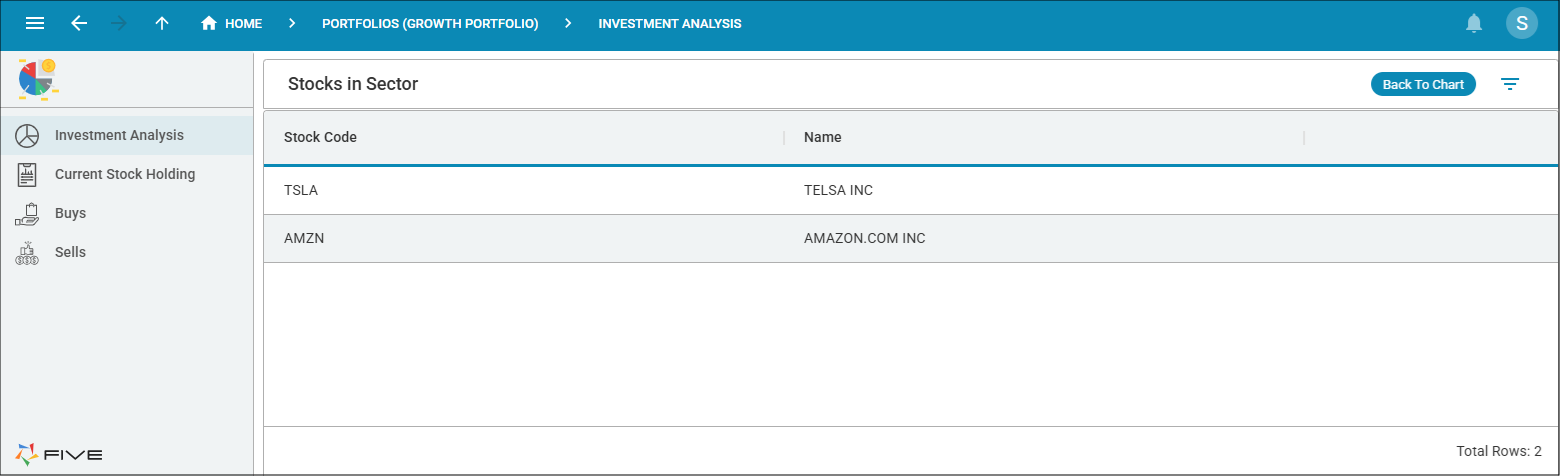

Add the Stocks In Sector data view to display the results from the StocksInSector query
Add the
ClickSector()
function which uses Five's
selectAction()
function
Attach the
ClickSector()
function to the On Click event for the Investment by Sector chart area dataset
Add the
PreviousAction()
function which uses Five's
previousAction()
function to return to the chart

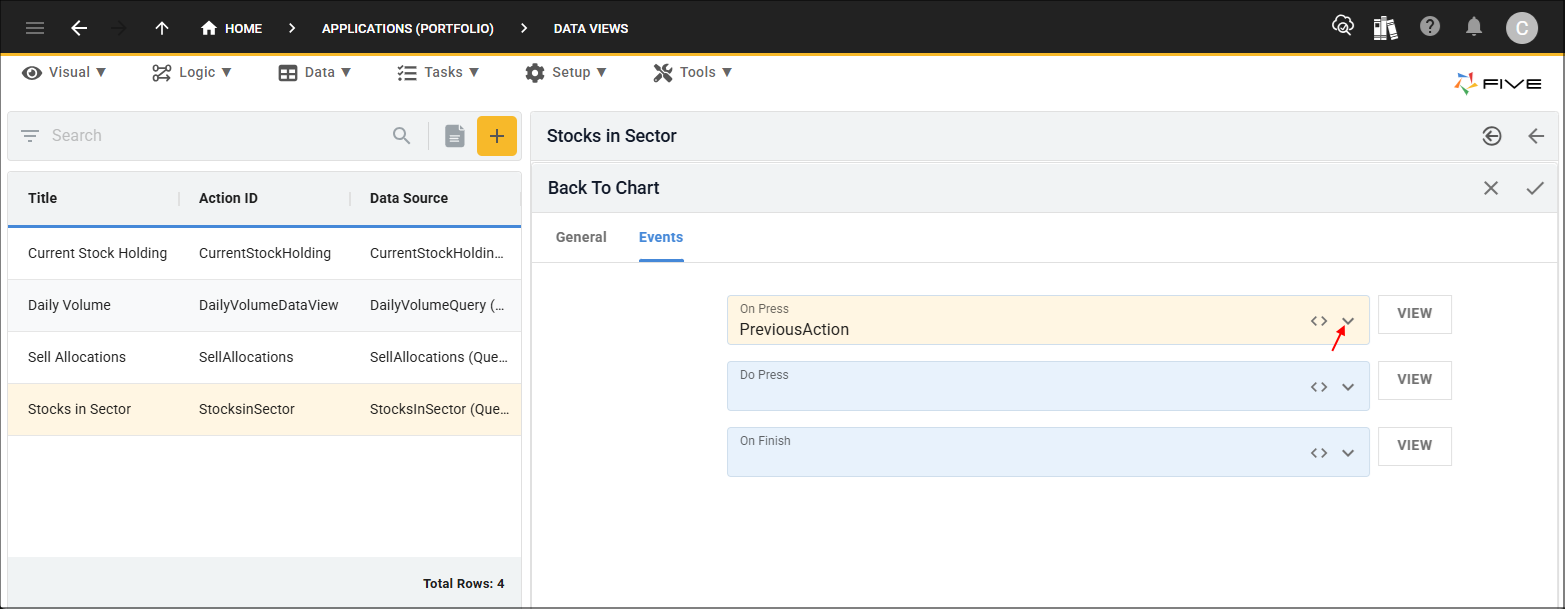

Add the Back To Chart action button on the Stocks In Sector data view and attach the
PreviousAction()
function to the On Press event to return to us to the previous action when clicked

Add the StocksInSector Query

The StocksInSector query's

SELECT

statement selects the

Stock.StockCode

and

Stock.Name

fields from the

Stock

table.

The

Stock

table is joined to the

Sector

table with a

WHERE

condition to filter the stocks belonging to the sector.

1. Click Data in the menu followed by Queries in the sub-menu.

Figure 1 - Queries menu item

2. Click the Add Item button and type StocksInSector in the Data Source ID field.

3. Click in the Query field to open Five's Query Builder.

Figure 2 - Add StocksInSector query

4. Click the SQL tab.

Figure 3 - SQL tab

5. Click the Copy button for the syntax below.

StocksInSector
SELECT
    Stock.StockCode,
    Stock.Name
FROM
    Stock
    INNER JOIN Sector ON Stock.SectorKey = Sector.SectorKey
WHERE
    Sector.Name = ?

6. Paste the syntax in the SQL Editor.

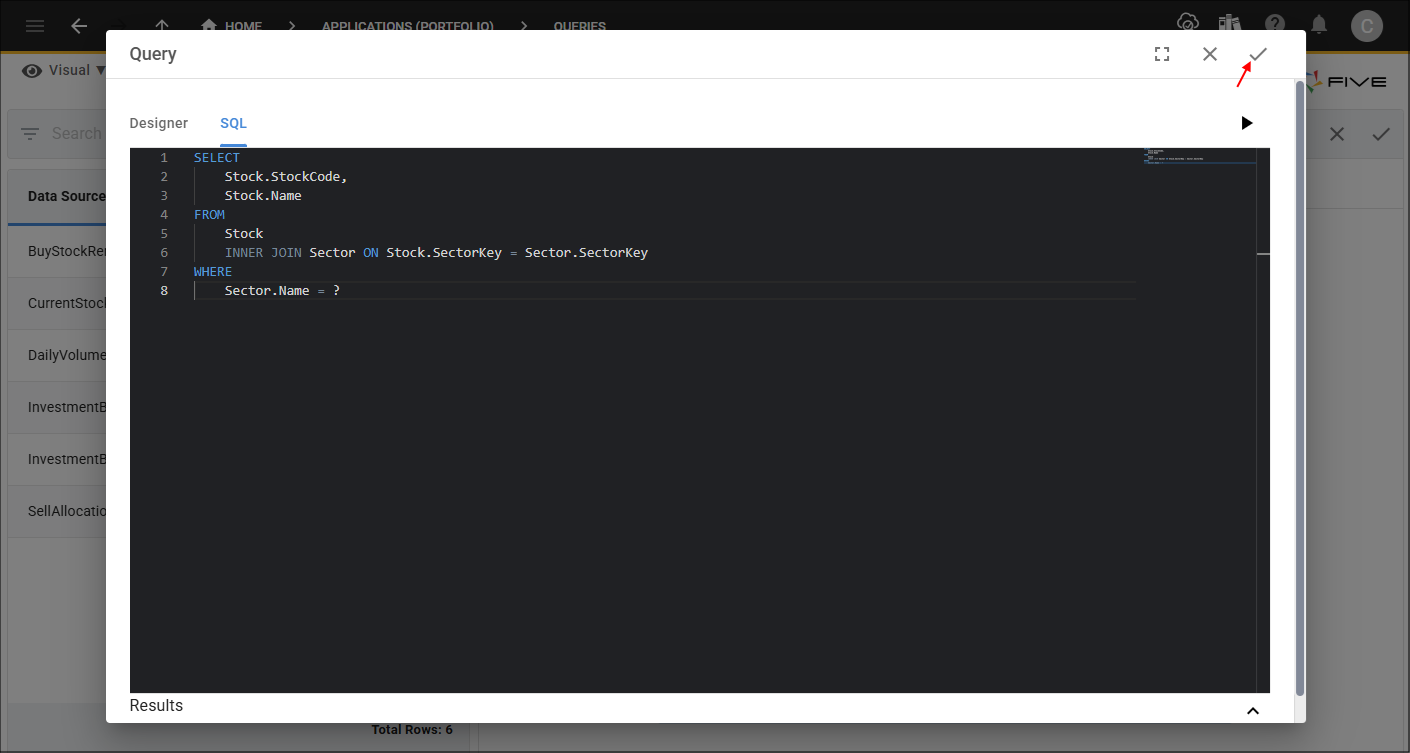

7. Click the Save button in the SQL Editor app bar.

Figure 4 - Save button

8. Click the Parameters tab.

Figure 5 - Parameters tab

9. Click the Add Parameters button.

Figure 6 - Add Parameters button

10. Type Sector in the Parameter ID field.

11. Type

in the Parameter field.

info

We will need to set the

Sector

variable using the

setVariable()

function on the

Five

object, this will be done when we add the

ClickSector()

function.

Figure 7 - Add the Sector parameter

12. Click the Save button in the form app bar.

Figure 8 - Save button

13. Click the Save button in the form app bar above the list.

Figure 9 - Save button

Add the Stocks in Sector Data View

The StocksInSector query will be used as the data source for the Stocks in Sector data view.

1. Click Visual in the menu followed by Data Views in the sub-menu.

Figure 10 - Data Views menu item

2. Click the Add Item button and type Stocks in Sector in the Title field.

3. Select StocksInSector (Query) in the Data Source field.

Figure 11 - Add Stocks in Sector data view

4. Click the Data Fields tab.

Figure 12 - Data Fields tab

5. Select the Stock.StockCode record.

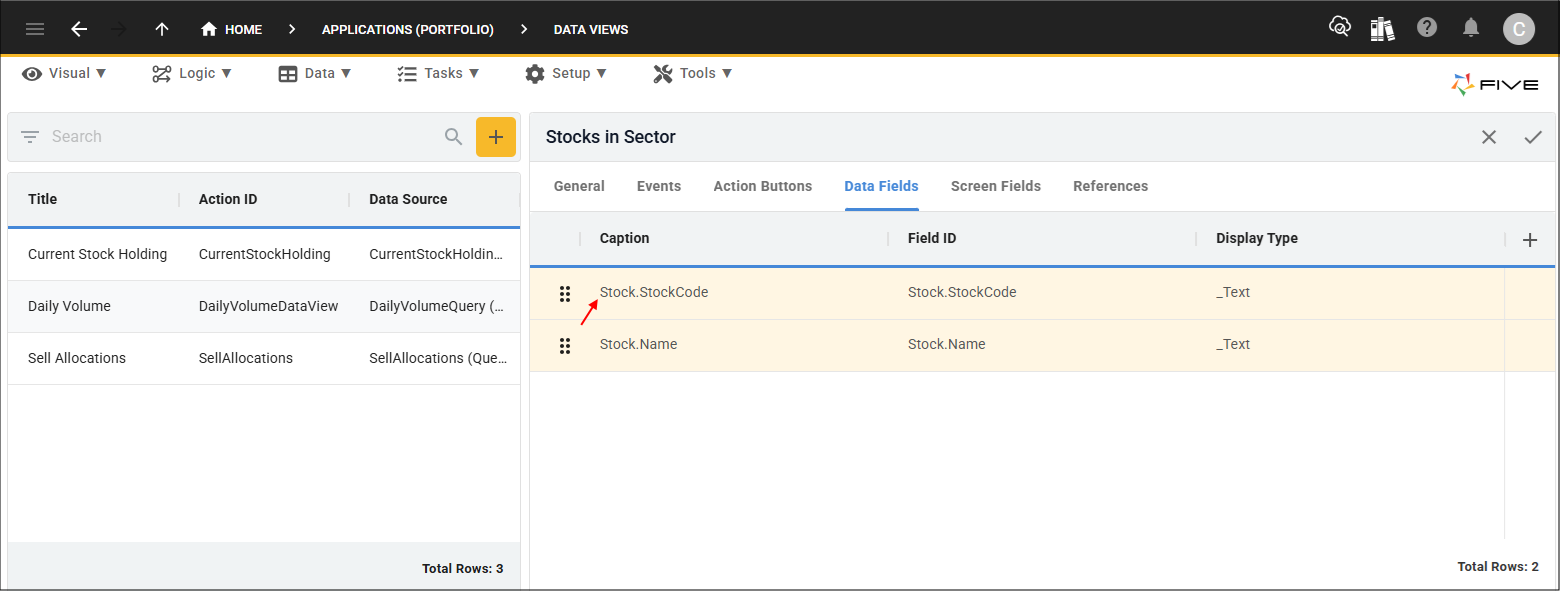

Figure 13 - Stock.StockCode record

6. Either click the Edit button in the form app bar or click directly in the Caption field.

7. Click the Cancel button in the Caption field and type Stock Code.

8. Click the Save button in the form app bar.

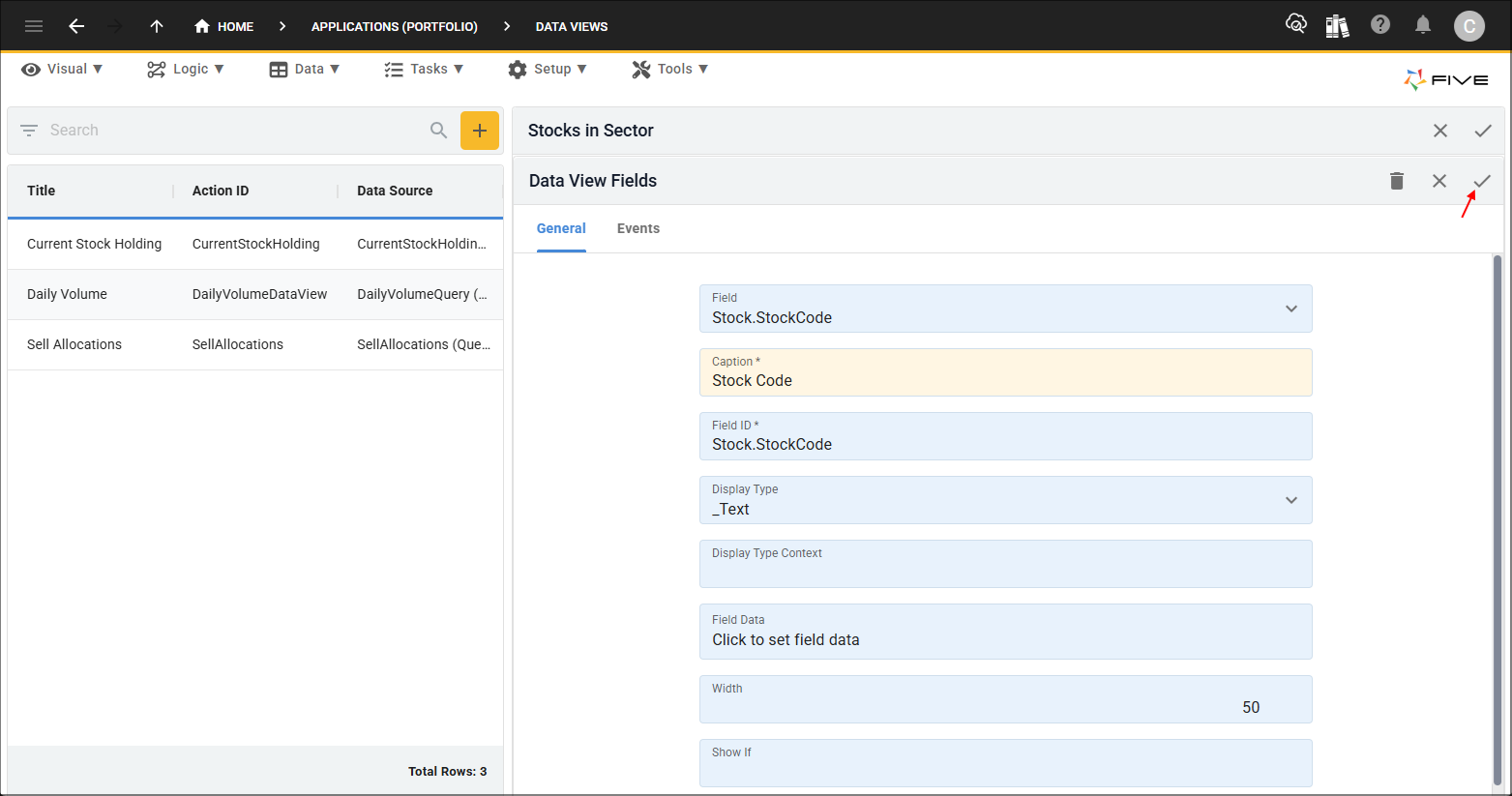

Figure 14 - Save button

9. Select the Stock.Name record.

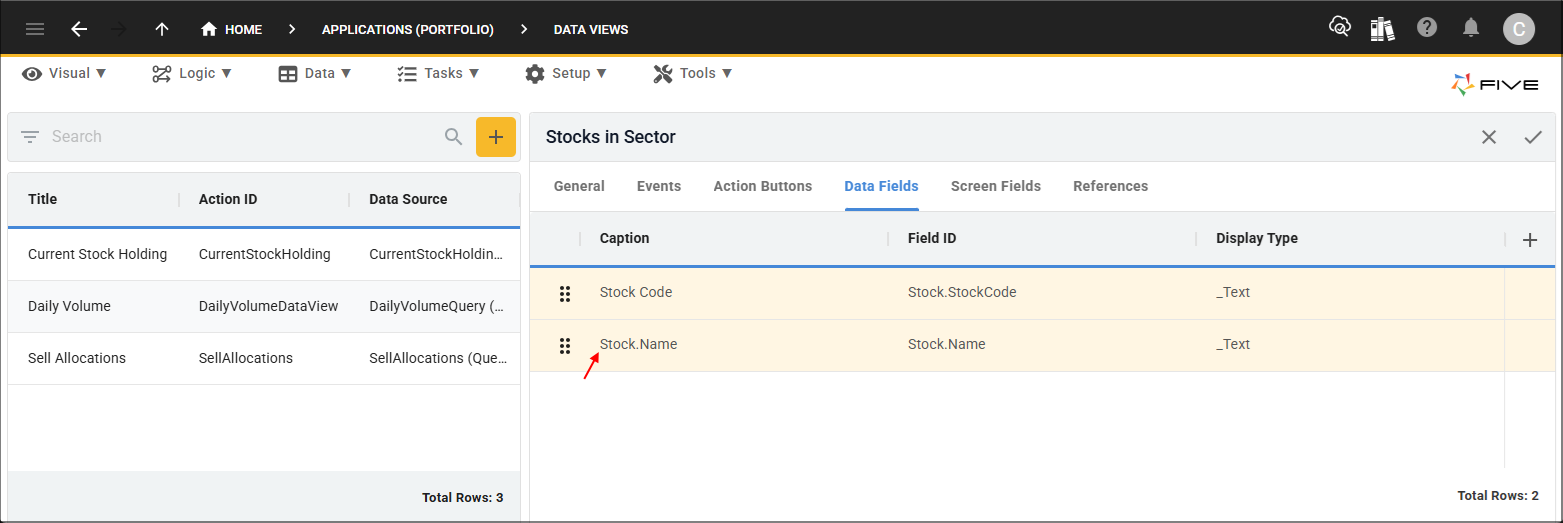

Figure 15 - Stock.Name record

10. Either click the Edit button in the form app bar or click directly in the Caption field.

11. Click the Cancel button in the Caption field and type Name.

12. Click the Save button in the form app bar.

Figure 16 - Save button

13. Click the Save button in the form app bar above the list.

Figure 17 - Save button

Add the ClickSector Function

When in Five's Code Editor you will be interacting with Five's API. In the

ClickSector()

function you will be using the following functions and parameter.

setVariable()

- is a function on the

Five

object that sets a global variable. It sets the value of the named global variable with a new value on the variable property on the

Five

object.

selectAction()

- is a function on the

Five

object that selects an action to take place of the current action without leaving the current menu.

context

- is a parameter passed in from the chart area dataset containing values regarding the chart segment that is clicked which is executed through the On Click event.

1. Click Logic in the menu followed by Code Editor in the sub-menu.

Figure 18 - Code Editor menu item

2. Click the Add New Code button.

Figure 19 - Add New Code button

3. Type ClickSector in the Function ID field.

4. Select TypeScript in the Language field and click the OKAY button.

Figure 20 - Add ClickSector function

5. Click the Copy button on the code block below.

ClickSector
function ClickSector(five: Five, context: any, result: FiveError) : FiveError {
    five.setVariable('Sector', context.xValue);
    five.selectAction('StocksinSector');
    return five.success(result);
}

6. Paste the code block over the template in the Code Editor and click the Save Current Tab button.

Figure 21 - Save Current Tab button

Attach the ClickSector Function

The Investment Analysis chart record has two chart area datasets. We need to attach the

ClickSector()

function to the On Click event for the Investment By Sector chart area dataset. When a slice of the pie chart is clicked, the event will execute and select the data view.

1. Click Visual in the menu followed by Charts in the sub-menu.

Figure 22 - Charts menu item

2. Select the Investment Analysis record in the list and click the Datasets tab.

Figure 23 - Datasets tab

3. Select the InvestmentBySector (Query) record.

Figure 24 - InvestmentBySector (Query) record

4. Click the Chart Area Datasets tab.

Figure 25 - Chart Area Datasets tab

5. Select the Investment By Sector record.

Figure 26 - Investment By Sector record

6. Click the Events tab.

Figure 27 - Events tab

7. Either click the Edit button in the form app bar or click directly in the On Click field.

8. Select ClickSector in the On Click field.

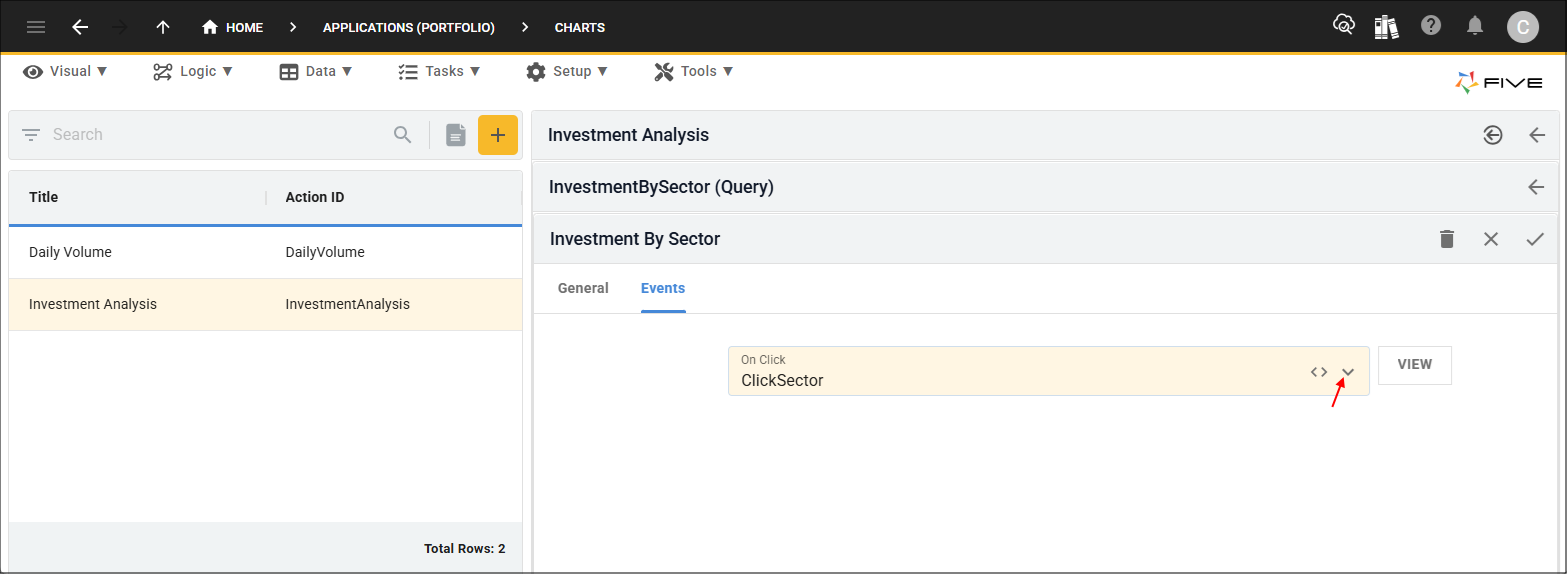

Figure 28 - On Click field

9. Click the Save button in the form app bar.

Figure 29 - Save button

10. Click the Save button in the form app bar above the list.

Figure 30 - Save button

Add the PreviousAction Function

When in Five's Code Editor you will be interacting with Five's API. In the

PreviousAction()

function you will be using the following function.

previousAction()

- is a function on the

Five

object that takes you back to the previously selected action. Optionally, you can pass in a number to go back several actions.

1. Click Logic in the menu and Code Editor in the sub-menu.

Figure 31 - Code Editor menu item

2. Click the Add New Code button.

Figure 32 - Add New Code button

3. Type PreviousAction in the Function ID field.

4. Select TypeScript in the Language field and click the OKAY button.

Figure 33 - Add PreviousAction function

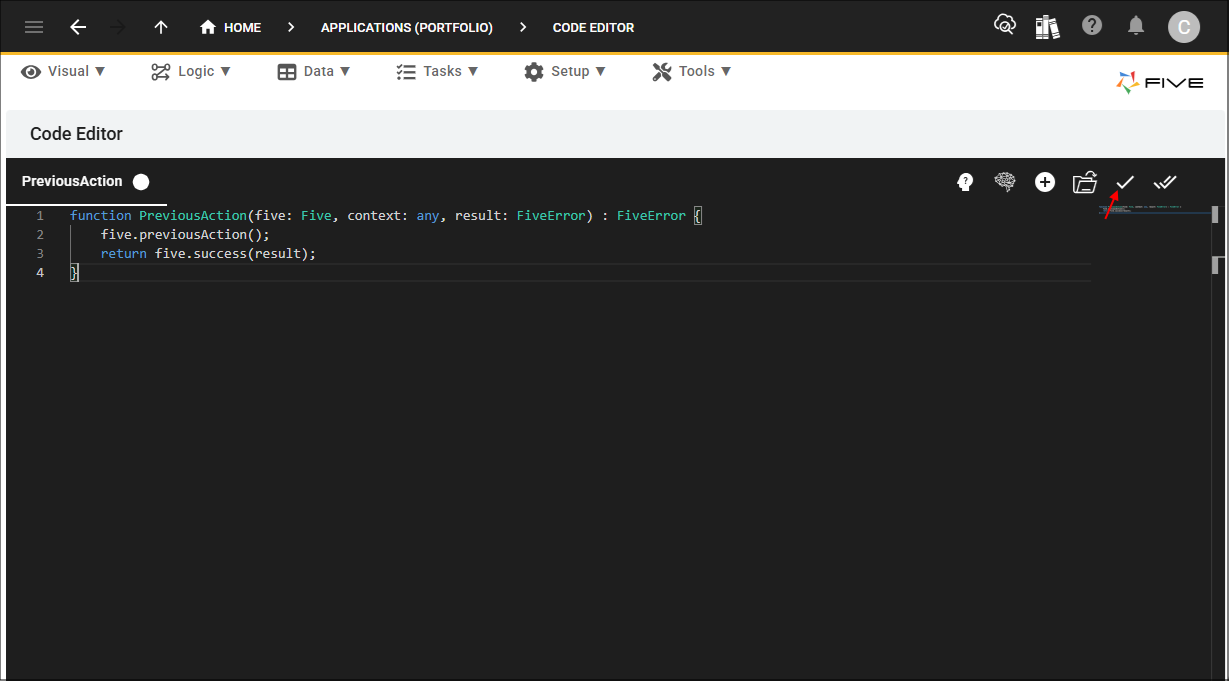

5. Click the Copy button on the code block below.

PreviousAction
function PreviousAction(five: Five, context: any, result: FiveError) : FiveError {
    five.previousAction();
    return five.success(result);
}
