Primary Authentication

Last updated 16/06/2025

Primary authentication is the initial step in the process of verifying a user's identity before granting access to your application.

How it Works

1. User initiates login: Enters a logon identifier, this can be a username, email, or phone number and a password (secret), email, or text message providing a one time password (OTP).
2. Five validates the credentials: Five compares the entered credentials to those stored as a securely hashed password in the database or the OTP.
3. Authentication decision: If credentials match, the user is granted access (or moves to secondary authentication if required). If they don't match, access is denied.

caution

Before editing an authentication record, ensure you have an email and a phone number set against your admin user in your application.

Primary Authentication Methods

Your primary authentication can be:

• Password - This is the default set by Five and requires a password to log into your application.
• Email - This requires SMTP settings to be configured in Five and the Authentication Email template configured with the One Time Password (OTP) tag.
• Text Message - This requires you to have a Twilio account, the values supplied from Twilio need to be configured in Five and the Authentication Message template configured with the One Time Password (OTP) tag.

Email as Your Primary Authentication

When using Email as your primary authentication you will need have the following in place:

• SMTP settings configured in Five
• Authentication Email template configured with the OTP placeholder
• Valid email addresses for your users on their user record

With email set as your primary authentication method, a user will have to enter their logon identifier first, which could be their username, email, or phone number and then a One Time Password (OTP) will be emailed to them. This code is then used to log into your application. The code is valid for 60 seconds, after this duration the code will expire and the user will need to re-enter their logon identifer to receive another code.

Although email can be your only authentication method, it is recommended to add a secondary authentication method for an additional layer of security.

Add Email as Your Primary Authentication

1. Select your instance record in the list.

2. Click the Authentication tab.

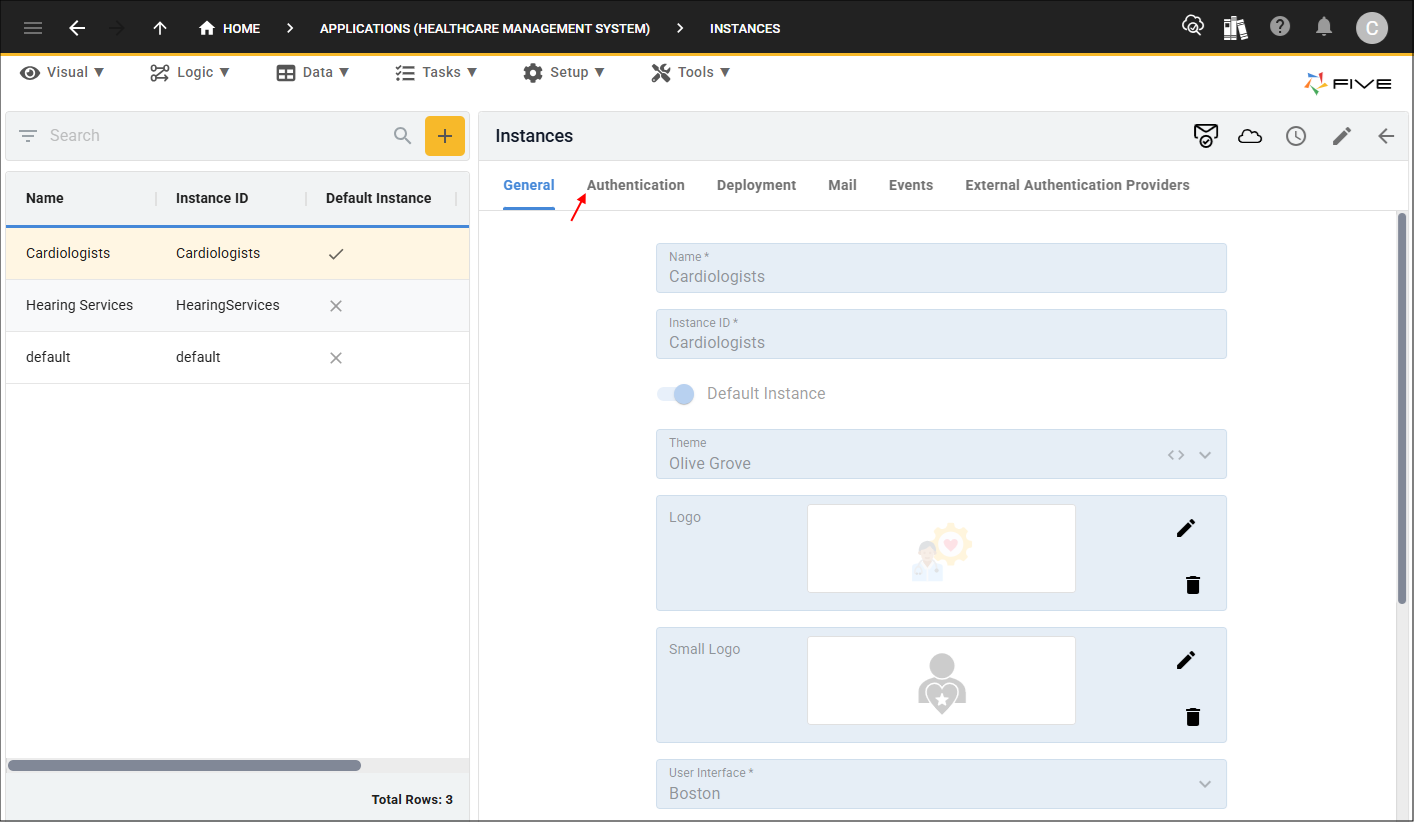

Figure 1 - Authentication tab

3. Either click the Edit button in the form app bar or click directly in the Primary Authentication field.

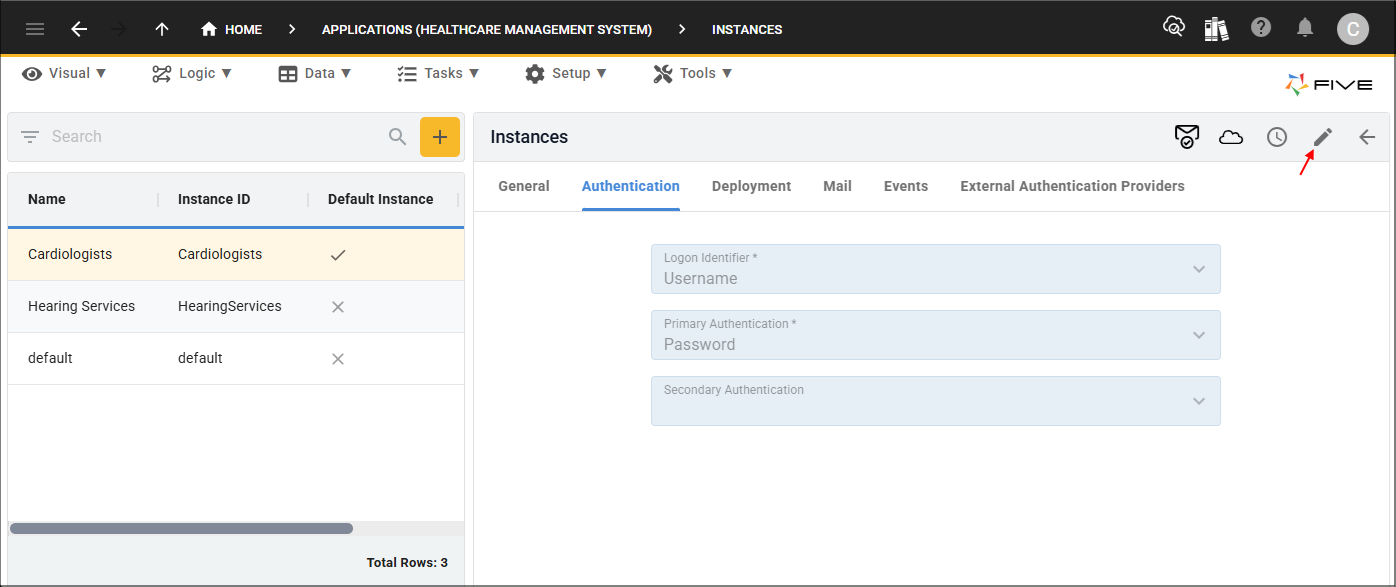

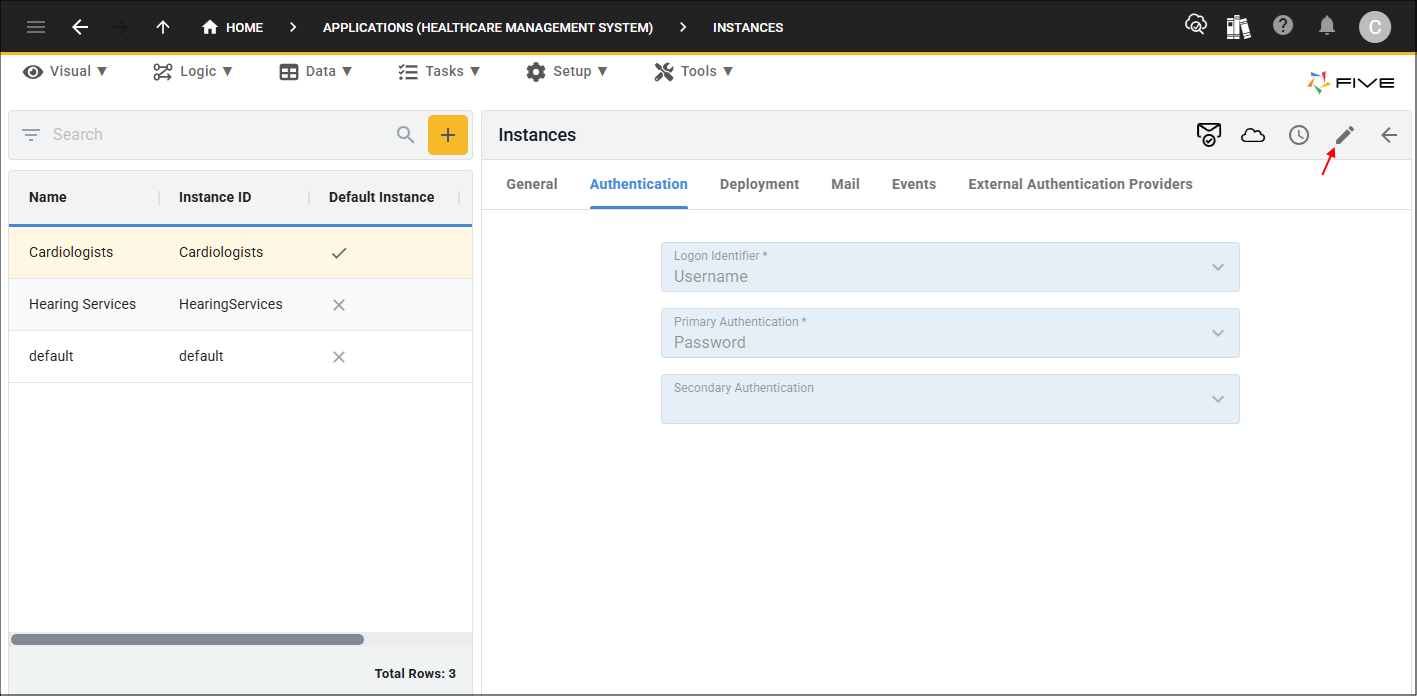

Figure 2 - Edit button

4. Click the lookup icon in the Primary Authentication field and select Email.

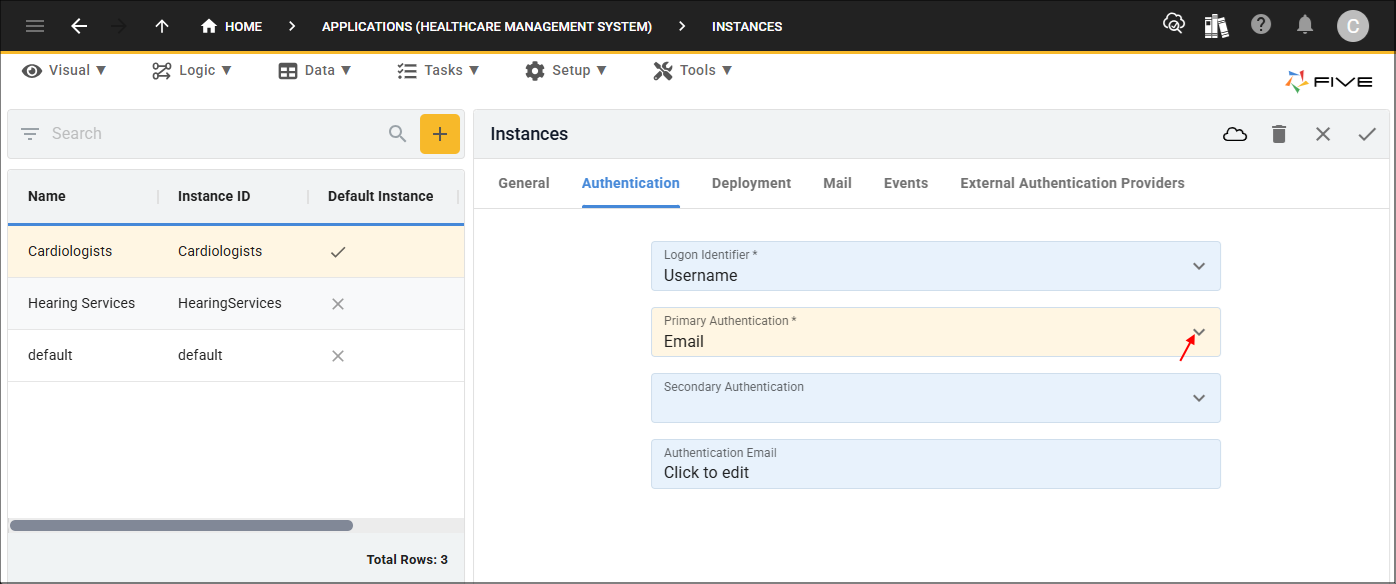

Figure 3 - Primary Authentication field

5. Click in the Authentication Email field to open the editor.

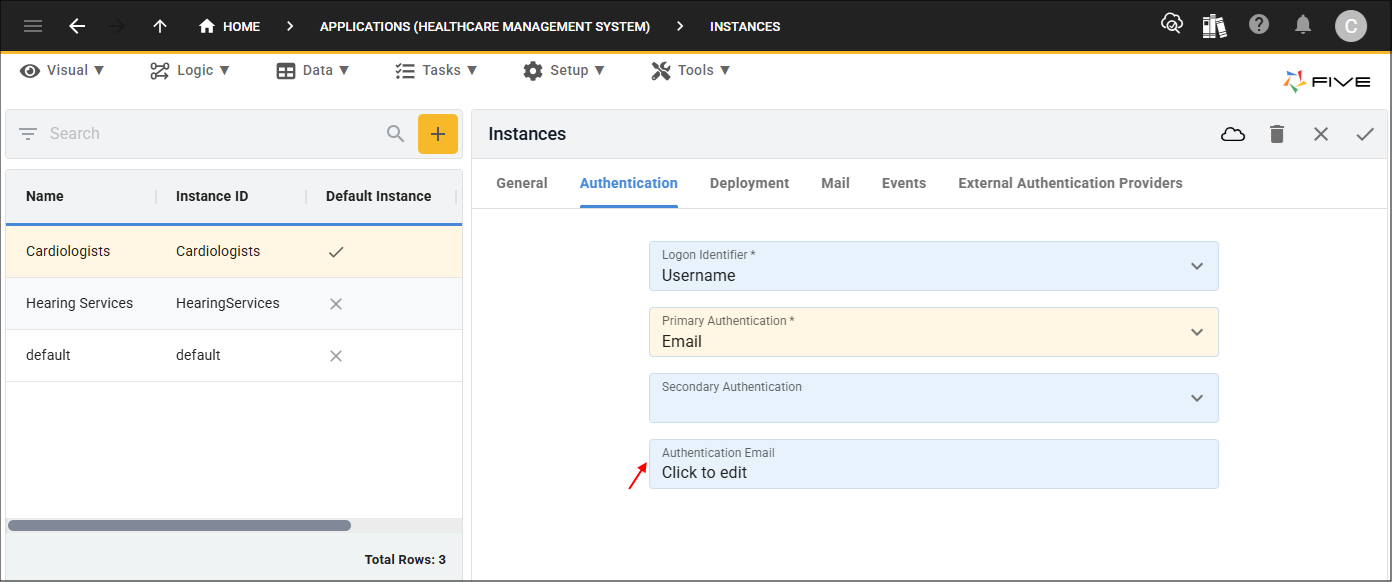

Figure 4 - Authentication Email field

6. Design your Authentication Email template and add the OTP tag.

info

The Authentication Email template can be designed in the same way as the Invite Email and the Password Reset Email templates.

tip

You must use the

{{five.variable.otp}}

placeholder in your template for the recipient to receive the code!

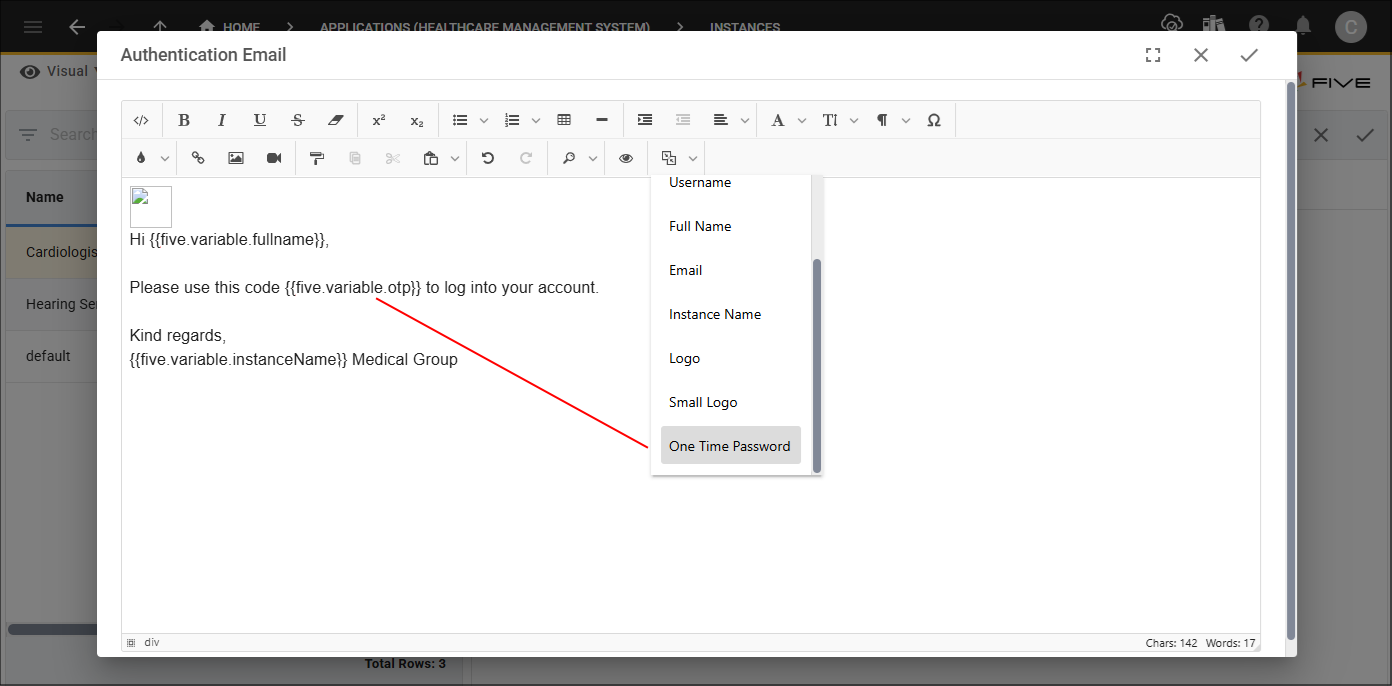

Figure 5 - One Time Password tag

7. Click the Save button in the editor app bar.

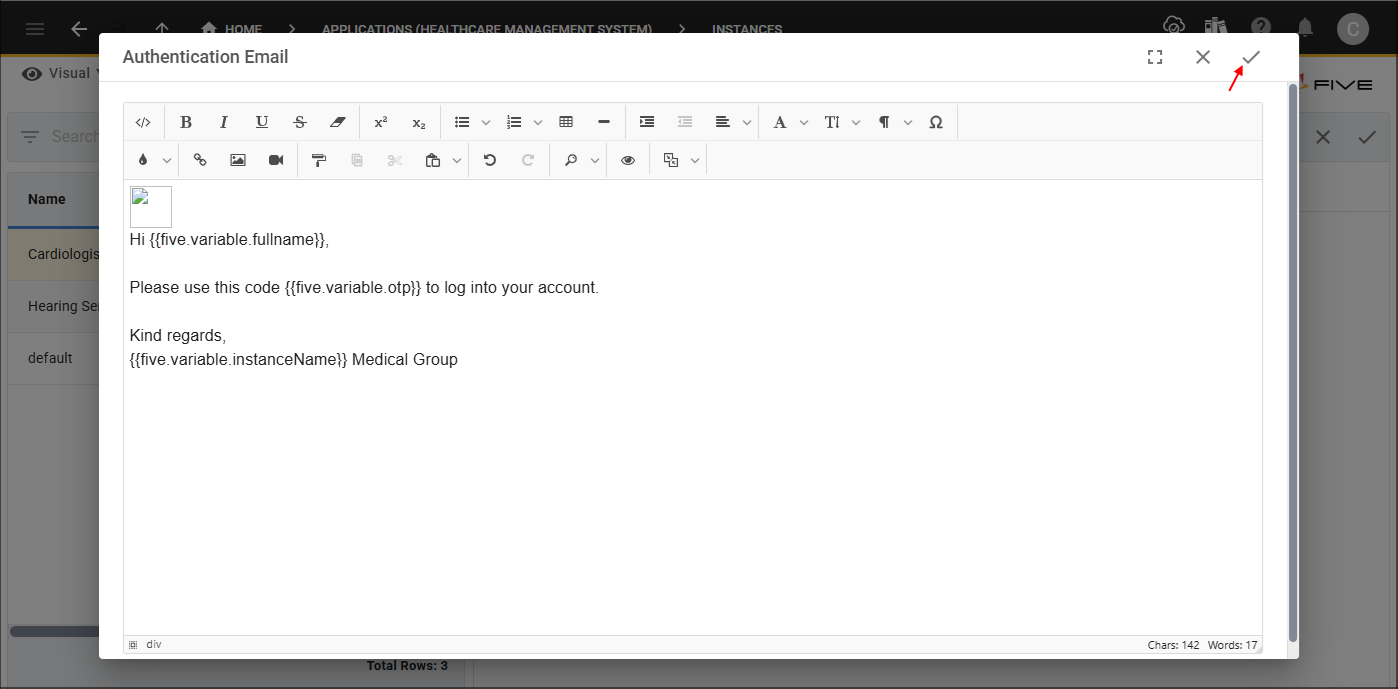

Figure 6 - Save button

8. Click the Save button in the form app bar.

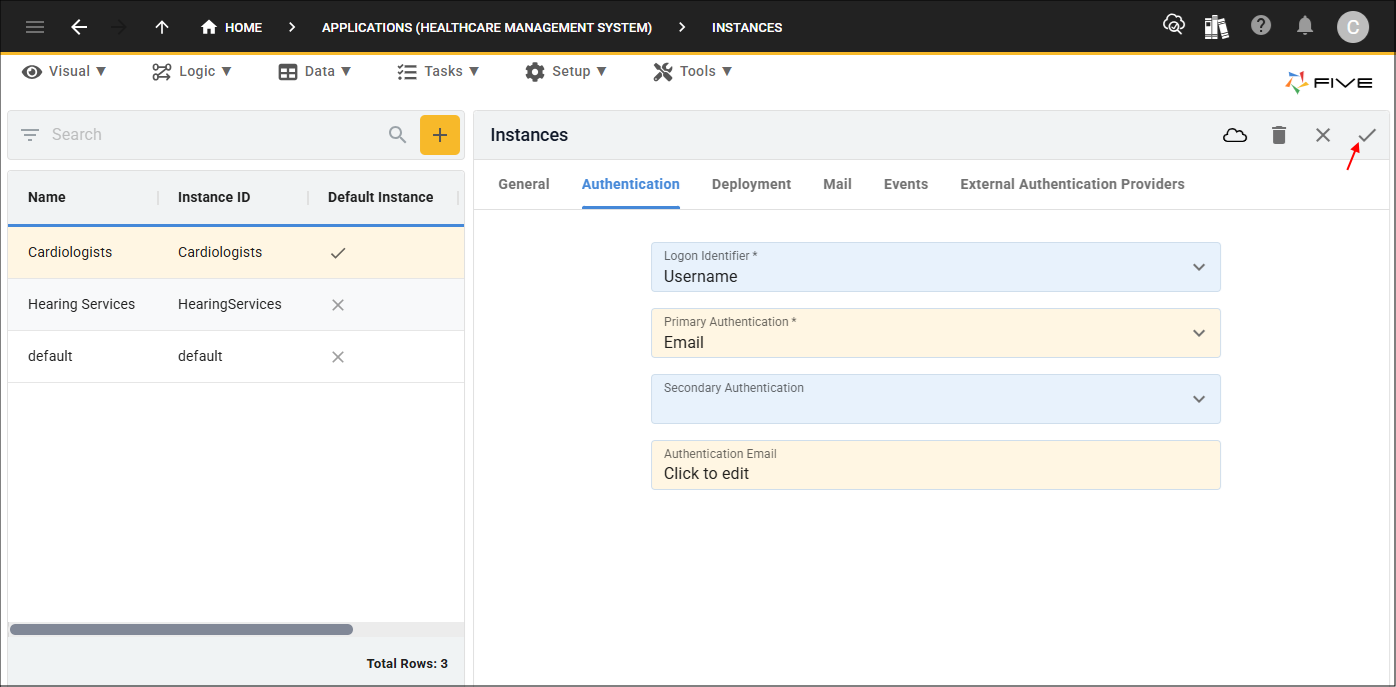

Figure 7 - Save button

Example Workflow

1. User enters their logon identifier in the Sign In window and clicks the Sign In button.

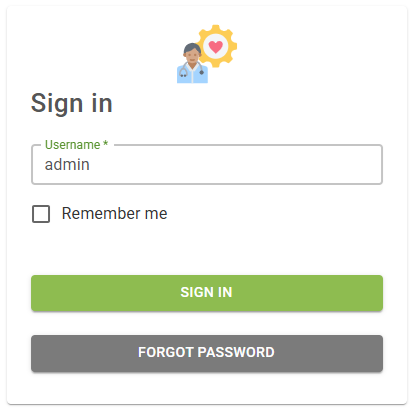

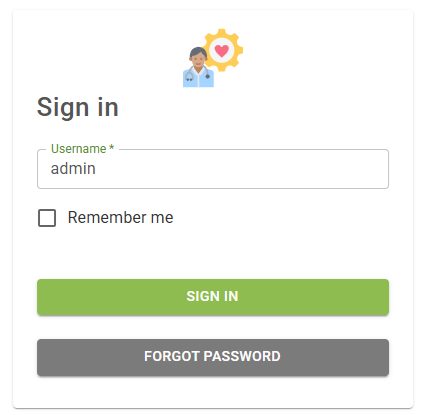

Figure 8 - Sign In window

2. User will receive a message letting them know that a code has been emailed to them and clicks the Enter Code button.

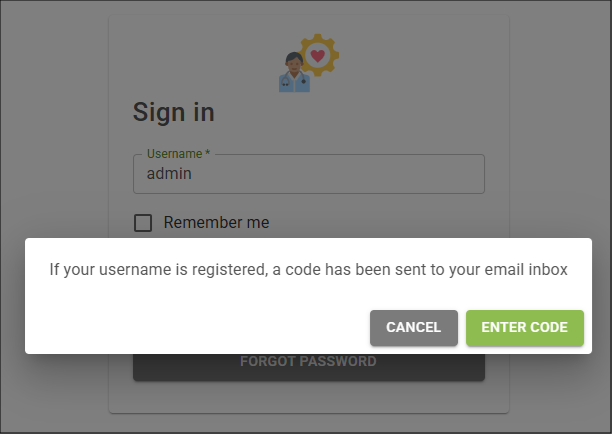

Figure 9 - Enter Code button

3. User needs to get the code from their email.

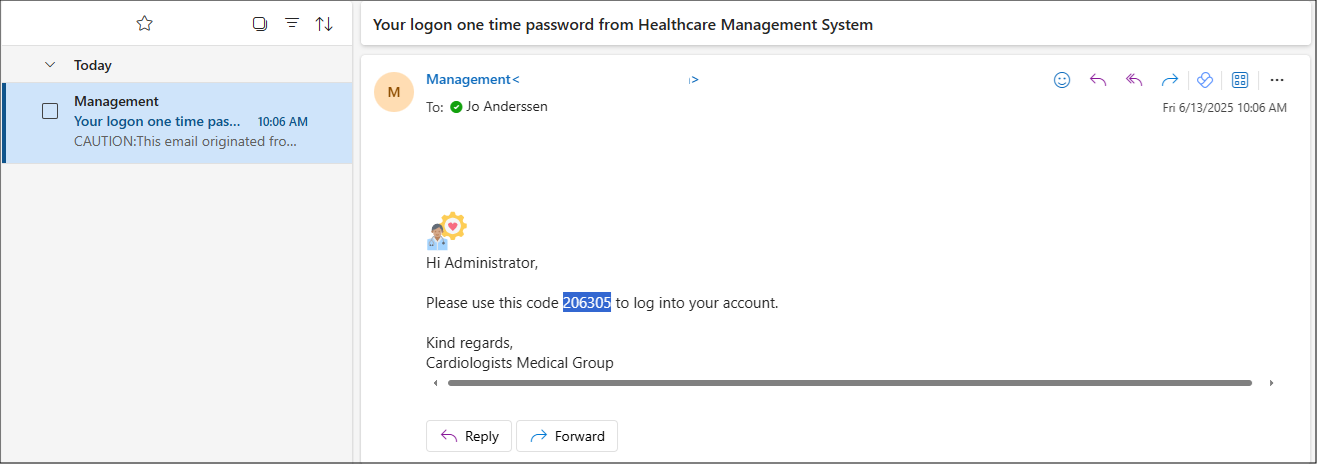

Figure 10 - Authentication Email template

4. User needs to add the code and click the Verify Code button.

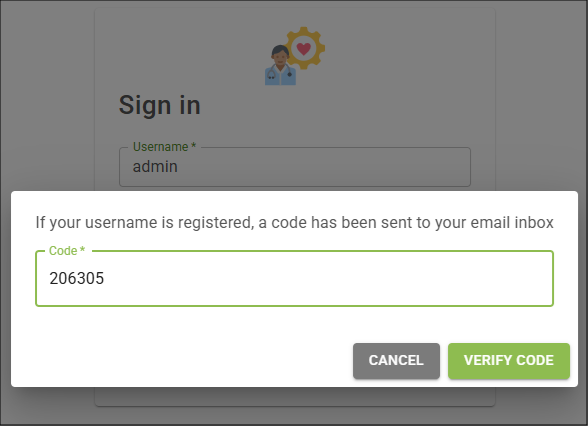

Figure 11 - Verify Code button

note

The user will still receive an email with the OTP if no Authentication Email template is configured, however, it will say the configuration for Authentication Email message has not been set.

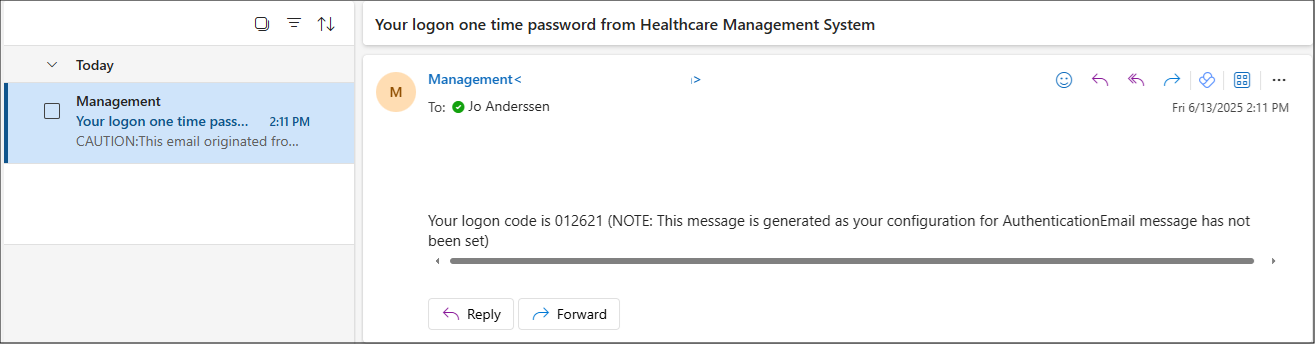

Figure 12 - Authentication Email template not configured

Text Message as Your Primary Authentication

When using Text Message as your primary authentication you will need to have the following in place.

• Twilio account and the Twilio values configured in Five
• Authentication Message template configured with the OTP placeholder
• Valid phone numbers for your users on their user record

With text message set as your primary authentication method, a user will have to enter their logon identifier first, which could be their username, email, or phone number and then a One Time Password (OTP) will be messaged to them. This code is then used to log into your application. The code is valid for 60 seconds, after this duration the code will expire and the user will need to re-enter their logon identifier to receive another code.

Although text message can be your only authentication method, it is recommended to add a secondary authentication method for an additional layer of security.

Sed Expression

A single country application can have a sed expression added and this will enable you to save your user's phone number in local format which can be used as the logon identifier. Without an expression configured, you will need to save the user's phone number with + country code and your users need to use this as their logon identifier if using phone number. As an example, if you are using a sed expression with the TWILIO_FORMAT key to format the phone number such as,

s/^0/+61/

, an Australian phone number will not need the country code prepended. The expression will convert the phone number before it is sent to Twilio.

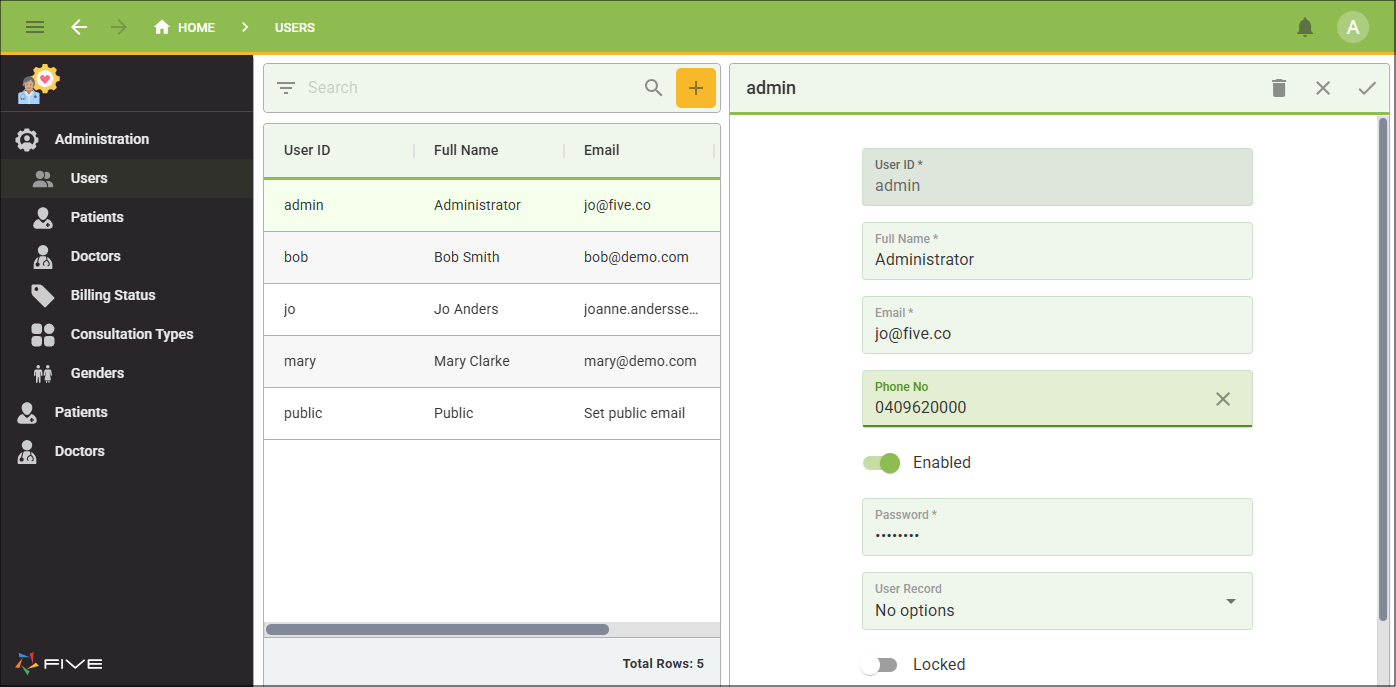

Figure 13 - Local phone number format

If your application is used in multiple countries, you cannot use the optional TWILIO_FORMAT key, you and your users would need to prepend + country code to their phone numbers.

Figure 14 - International phone number format

Add Text Message as Your Primary Authentication

1. Select your instance record in the list.

2. Click the Authentication tab.

Figure 15 - Authentication tab

3. Either click the Edit button in the form app bar or click directly in the Primary Authentication field.

Figure 16 - Edit button

4. Click the lookup icon in the Primary Authentication field and select Text Message.

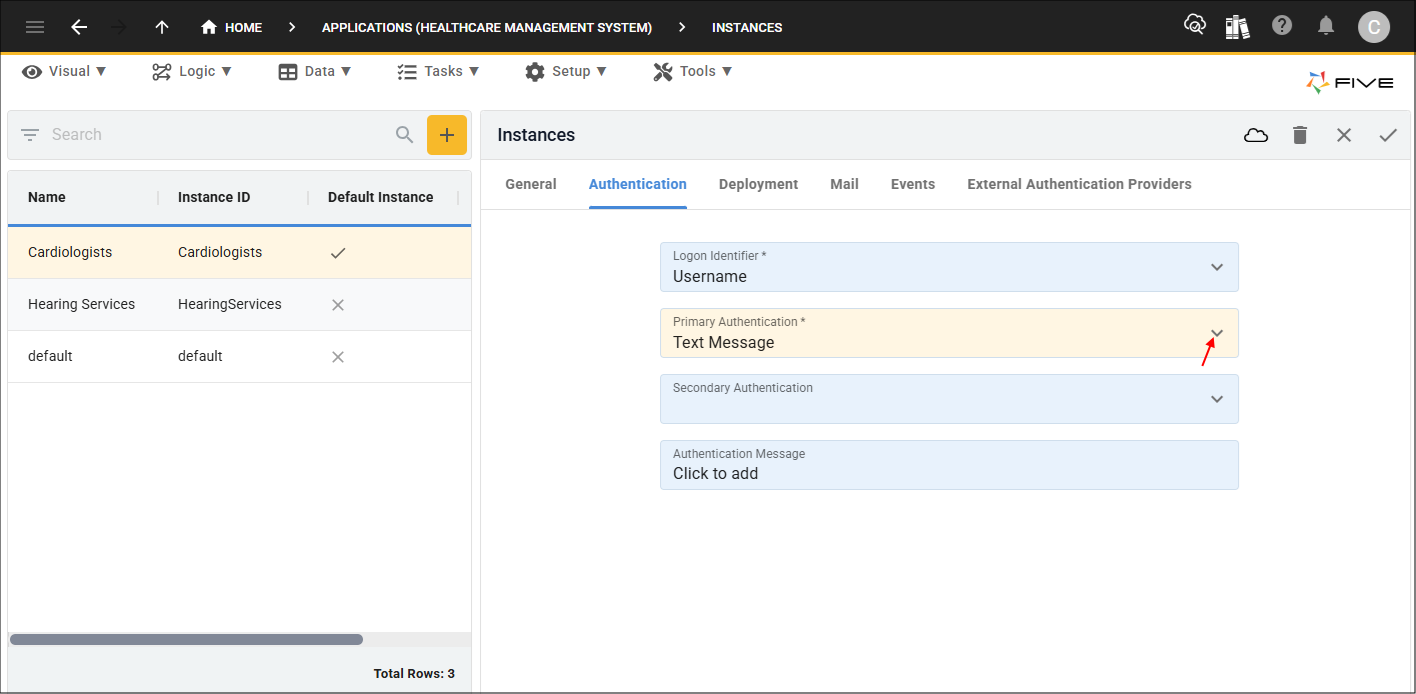

Figure 17 - Primary Authentication field

5. Click in the Authentication Message field to open the editor.

Figure 18 - Authentication Message field

6. Design your Authentication Message template and add the OTP tag.

info

The Authentication Email template can be designed in the same way as the Invite Email and the Password Reset Email templates.

tip

You must use the

{{five.variable.otp}}

placeholder in your template for the recipient to receive the code!

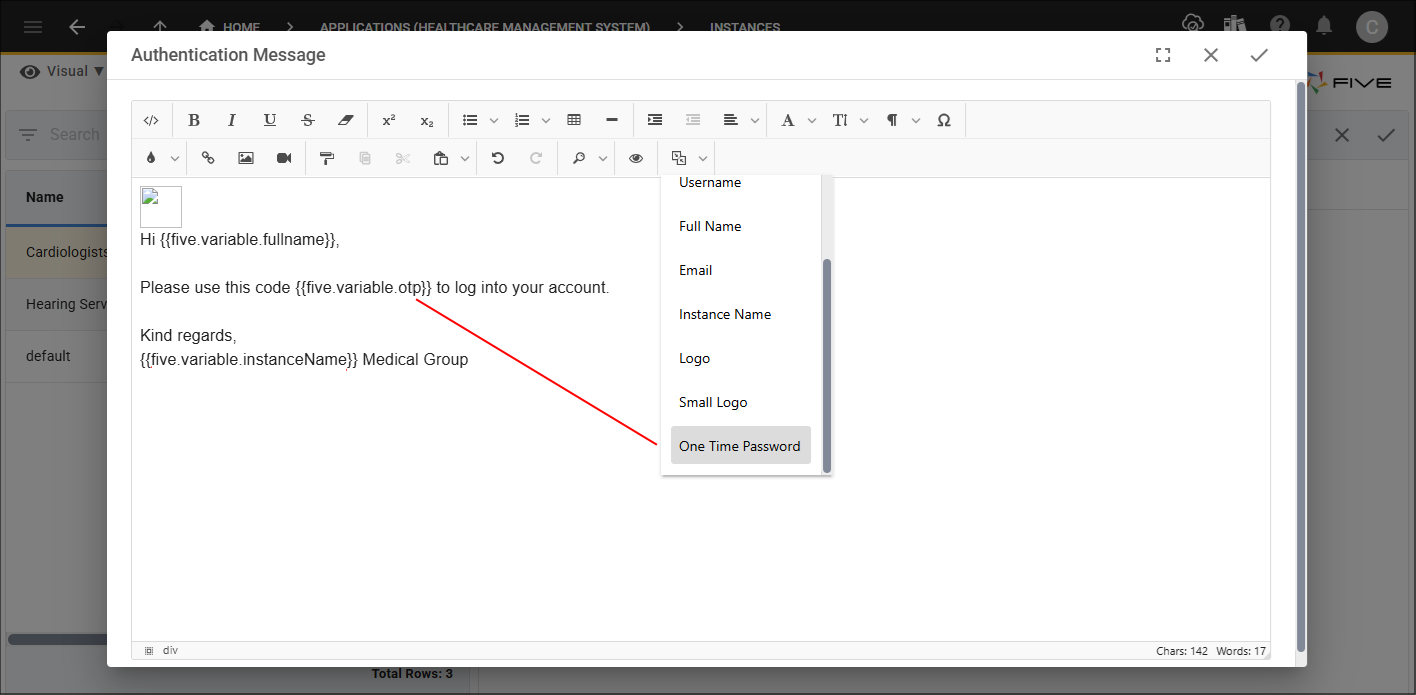

Figure 19 - One Time Password tag

7. Click the Save button in the editor app bar.

Figure 20 - Save button

8. Click the Save button in the form app bar.

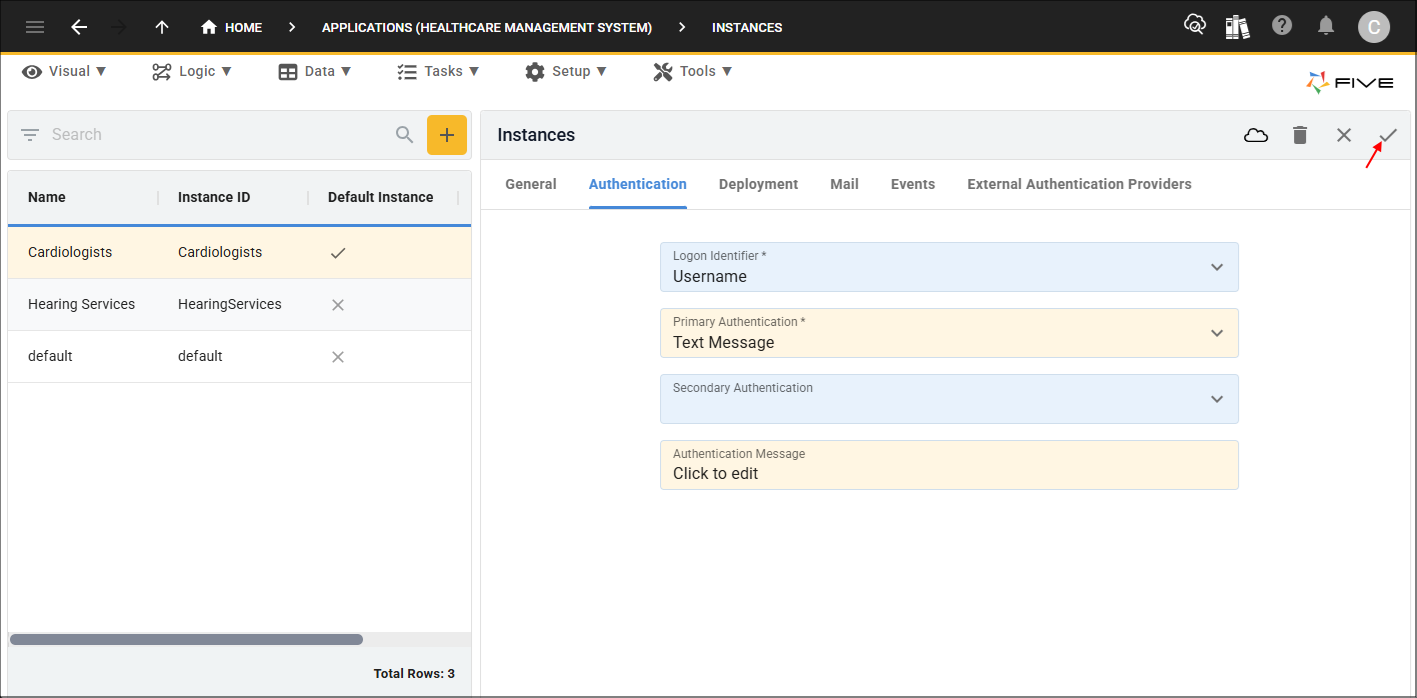

Figure 21 - Save button

Example Workflow

1. User enters their logon identifier in the Sign In window and clicks the Sign In button.

Figure 22 - Sign In window

2. User will receive a message letting them know that a code has been sent as a text message to them and clicks the Enter Code button.

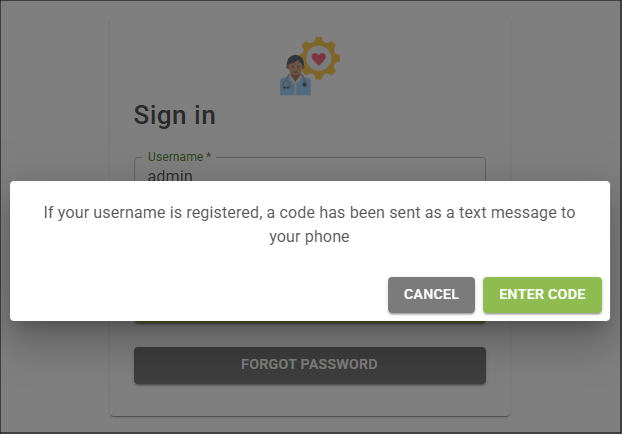

Figure 23 - Enter Code button

3. User needs to get the code from their text messages.

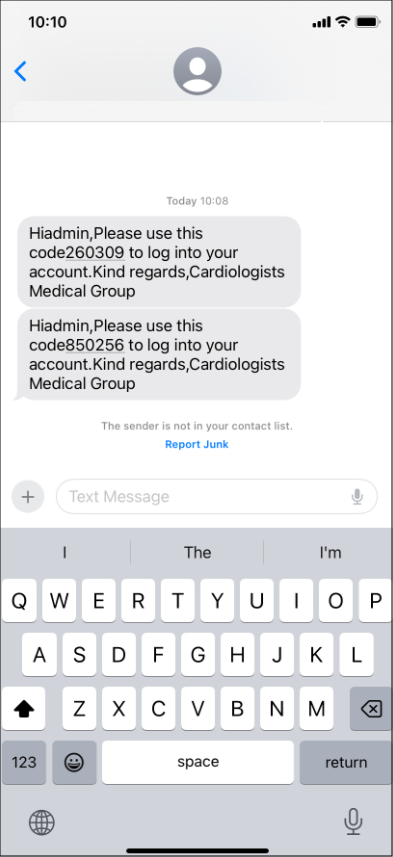

Figure 24 - Text message with code

4. User needs to add the code and click the Verify Code button.

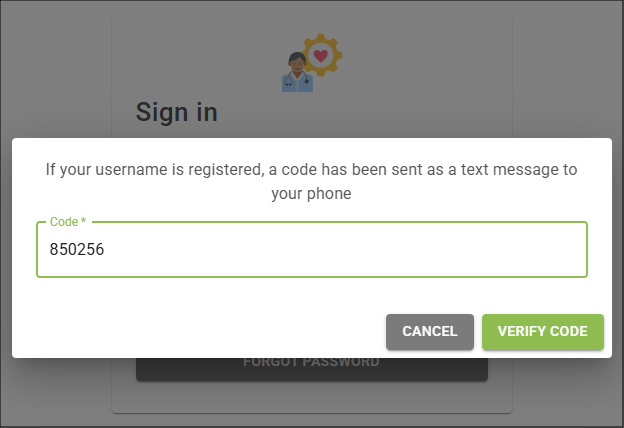

Figure 25 - Verify Code button

note

The user will still receive a text message with the OTP if no Authentication Message template is configured, however, it will say the configuration for AuthenticationMessage message has not been set.

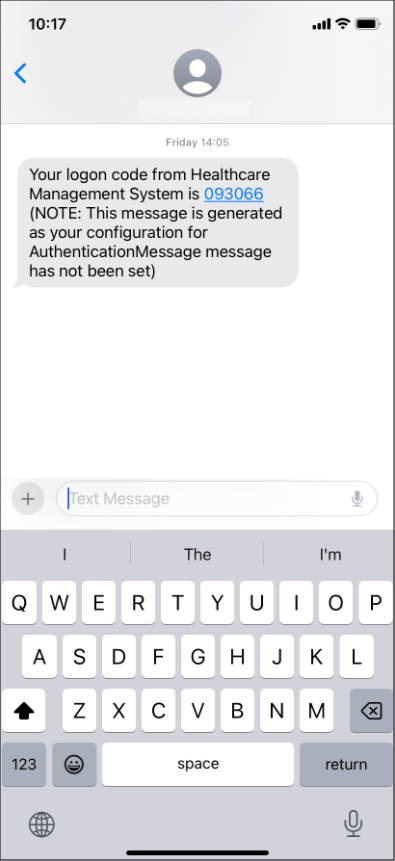

Figure 26 - Authentication Email template not configured
