Introduction to Five's Form Pages

Last updated 24/11/2021

Why Have Different Pages

Complex forms can be split across multiple pages in Five, allowing you to present your content in a user-friendly manner for your end-users to consume. Different types of pages can be created to gather and represent your data. In Five, pages are easy to create and can be displayed in different ways.

Layout of the Form Pages Form

The content to build a form page is separated across several pages, selecting each tab will navigate you to the associated page.

Form Page Form
Figure 1 - Form Page tabs

Page CaptionDefinition
GeneralThe General page will be used to define the properties for the form page and select the type of page you are building.
EventsThe Events page will be used to attach functionality to your form page.
FieldsThe Fields page will be used to add fields to your form when the page type is Form.

Access a New Form Page Form

  1. Select Forms in the menu.
  2. Click the Add Item button in the list app bar.
  3. Fill in the required details for the form on the General page.
  4. Click the Pages tab.
  5. Click the Add Pages button.
New Form Page Form
Figure 2 - Access a new Form Page form

Access a Saved Form Page Record

  1. Select Forms in the menu.
  2. Select a saved form record in the list.
  3. Click the Pages tab.
  4. Select a saved form page record.
Saved Form Page Record
Figure 3 - Access a saved form page record

Types of Pages

Five has four types of pages for you to gather and display data.

Page TypeDescription
FormA Form page type is required as the first page. When a user selects the menu item referencing the form a list of records will be made available and the list app bar will hold the Add Item button. The Add Item button will make a new form available when pressed.
ListA List page type will display a list of all the records for a form. What is included in the list is determined by the fields that are flagged 'Include In List' on the referenced form. The list holds the Add button which will make a new form available. So effectively, when selecting a List page type, the list will be the first element displayed and by clicking the Add Button the form being referenced will be available.
JoinA Join page type requires a many-to-many relationship in your database. When on the join page switches will be provided to make a selection/s. Minimum and Maximum values can be set to enforce the number of selections you require.
ActionAn Action page type allows you to reference any action in Five and display this on your form. This capability provides you with a way to represent or gather extra data without a user having to leave the form.

How Users Will Access Pages in Your End-User Application

There are two ways your users can navigate through the pages on your form.

Top - Tabs will be positioned at the top of the form, and when a user clicks on one, they will be taken to that page. The page caption will be labeled on the tabs. There will be no tabs displayed if your form simply has one page.

Top Navigation
Figure 4 - Top navigation

Continuous - The form will continue to flow, with the page caption provided at the top of each page. The vertical scroll bar can be used to navigate to each page of a long continuous form.

Continuous Navigation
Figure 5 - Continuous navigation

Default: Top

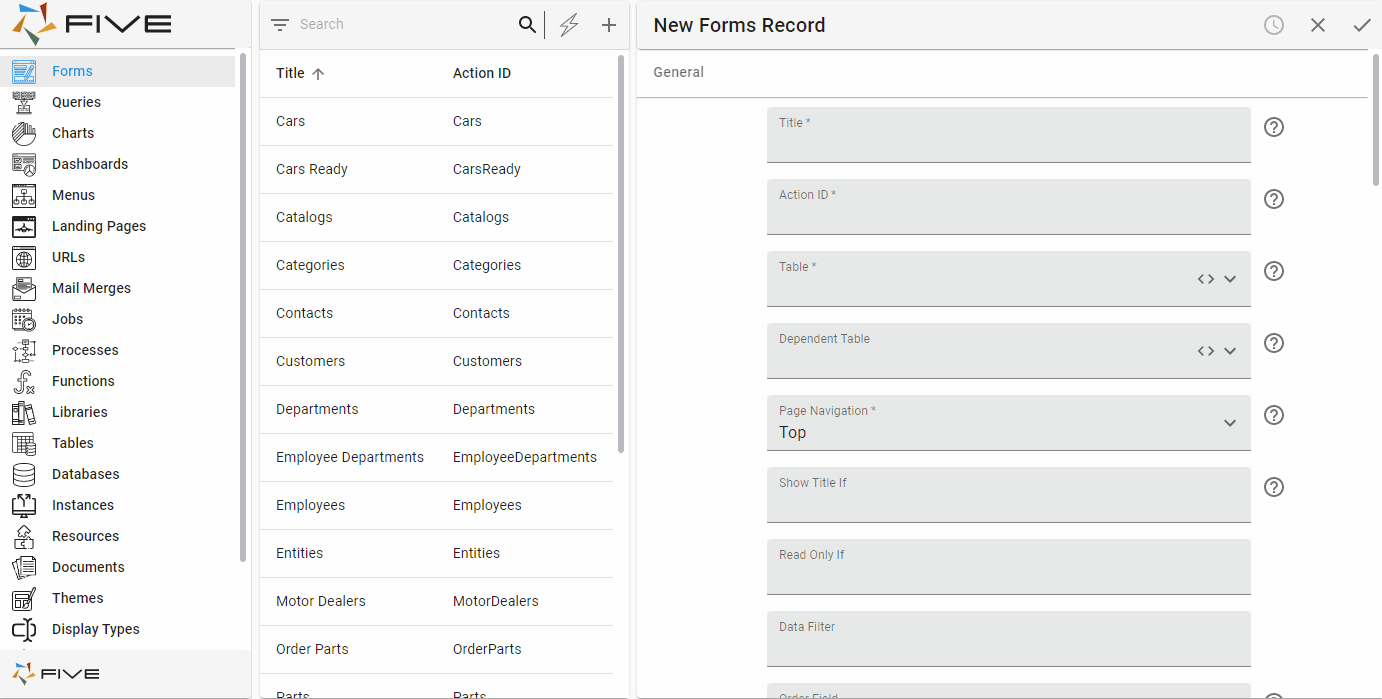

How to Change the Navigation

  1. On the General page, use the lookup icon in the Page Navigation field and select Continuous.
Page Navigation Field
Figure 6 - Page Navigation field
