On Click

Last updated 25/07/2025

This documentation will demonstrate how the On Click event works. The On Click event is a client-side event and only supports a _Button display type. When the button is clicked, the function attached to the On Click event will execute.

tip

If you require a backend function to work with the On Click event, you can call it from the frontend using Five's

executeFunction()

function!

The Orders application is used to demonstrate the On Enter event.

Execute an On Click Event

The

SelectProducts()

function uses the

selectAction()

function on the

Five

object in the format

five.selectAction('FormActionID')

This will select the list of Product records when the field with the _Button display type is clicked.

Select the list of products
function SelectProducts(five, context, result)  {
    five.selectAction('Products');
    return five.success(result);
}

The

SelectProducts()

function is saved in the Functions view.

Figure 1 - SelectProducts function

The See Product List field on the Customers form has a _Button display type.

Figure 2 - See Product List field

The

SelectProducts()

function is attached to the On Click event for the See Product List field.

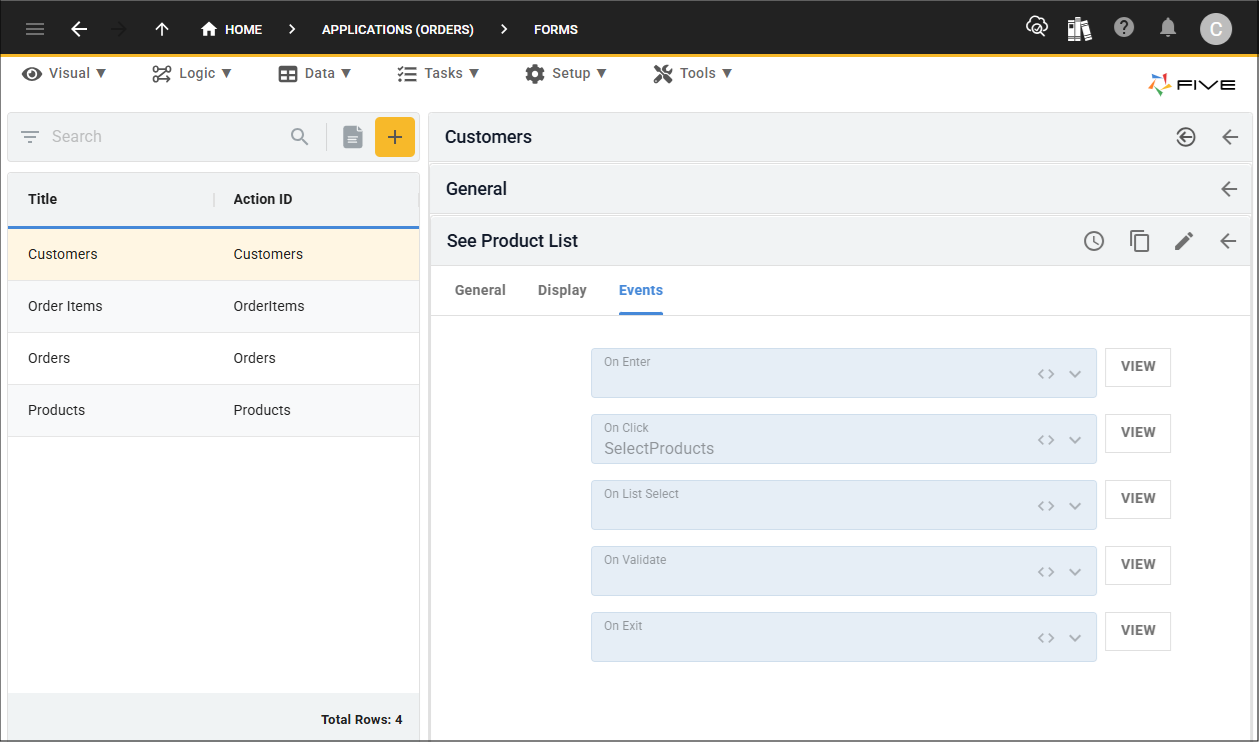

Figure 3 - On Click field

In the Orders application on the Customers form, when the See Product List button is clicked, the On Click event executes the

SelectProducts()

function which will select the list of form records for the products in the system.

note

You may need to refresh your screen to see the gif.

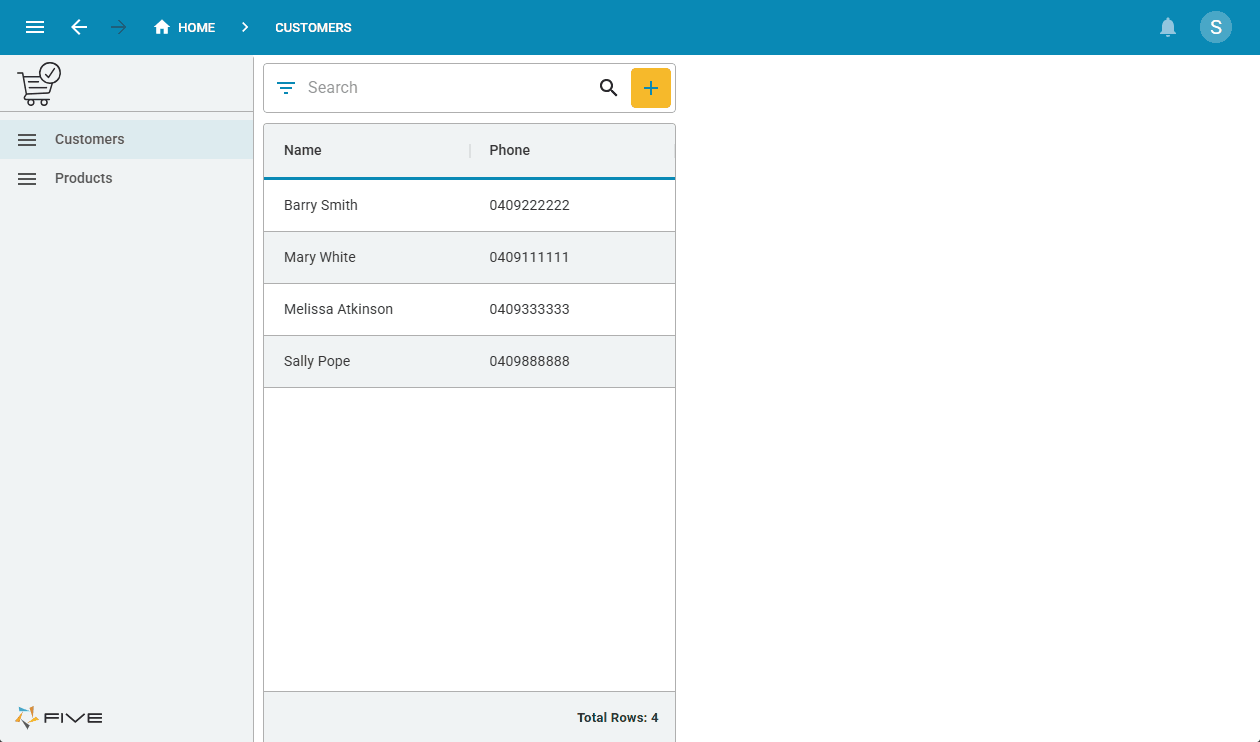

Figure 4 - On Click event
